Lifeline Anchor Points
Lifeline Anchor Points are critical elements of any fall protection system, providing secure and certified attachment points for workers operating at height. Designed to work seamlessly with fall protection PPE, including fall arrest harness and full body harness kit, these anchor points ensure maximum safety during construction, maintenance, and rope access activities.
TSS Lifeline Anchor Points are permanently installed solutions engineered to meet international safety standards and harsh environmental conditions, making them ideal for industrial and construction projects across the Middle East.
Lifeline Attachments
Swivel Anchor L5FL10
L5FL10/ Swivel anchor It is stainless steel casting part, with 70mm diameter base, M12 bolt is used for fixing on position, it can rotate after tightening.
Anchor ring Twinfix LDV057
The anchor ring Twinfix is permanently installed on a building or other structure to maintain people who are at risk of falling when carrying out maintenance work. IT must be attached to the structure by two M12 bolts.
The Twinfix is frequently used for rope access application. Typically two anchor points are mounted side by side to connect the main and safety rope.
Twinfix XL Anchor PTA016
What Are Lifeline Anchor Points and How They Work
Lifeline Anchor Points are fixed anchorage devices installed on structures such as concrete, steel, walls, ceilings, or roofs. Their primary function is to securely connect workers to construction safety harness systems, preventing free fall and minimizing impact forces in the event of a fall.
When integrated with a fall arrest harness or full body harness kit, these anchor points transfer fall loads safely to the structure, ensuring reliable protection during work at height, maintenance, and abseiling operations.
Types of Lifeline Anchor Points for Fall Protection
TSS offers a comprehensive range of Lifeline Anchor Points designed for different applications and load requirements:
Swivel Anchor L5FL10
The L5FL10 Swivel Anchor is manufactured from stainless steel casting and features a 70 mm diameter base. It is fixed using an M12 bolt and allows rotation even after tightening. This swivel function improves user mobility and reduces stress on fall protection PPE, making it suitable for dynamic working environments.

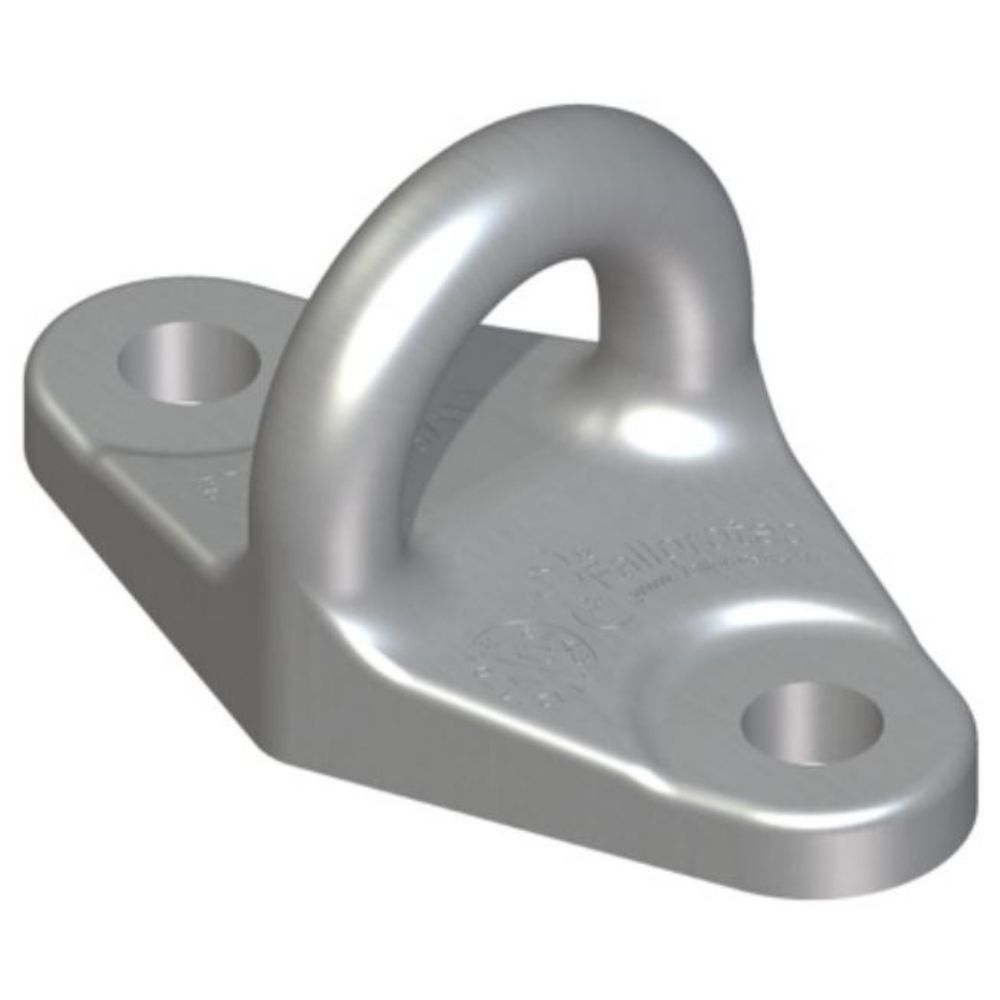

Anchor Ring Twinfix – LDV057
The Twinfix Anchor Ring is a permanently installed anchorage point designed to protect workers exposed to fall risks during maintenance and rope access activities. It must be secured to the structure using two M12 bolts.
This anchor is commonly used in rope access applications, where two anchor points are installed side by side to connect the main rope and safety rope. Manufactured from stainless steel AISI 316, it complies with EN 795:2012 Type A and CEN/TS 16415:2013 standards, ensuring safe integration with fall arrest harness systems.

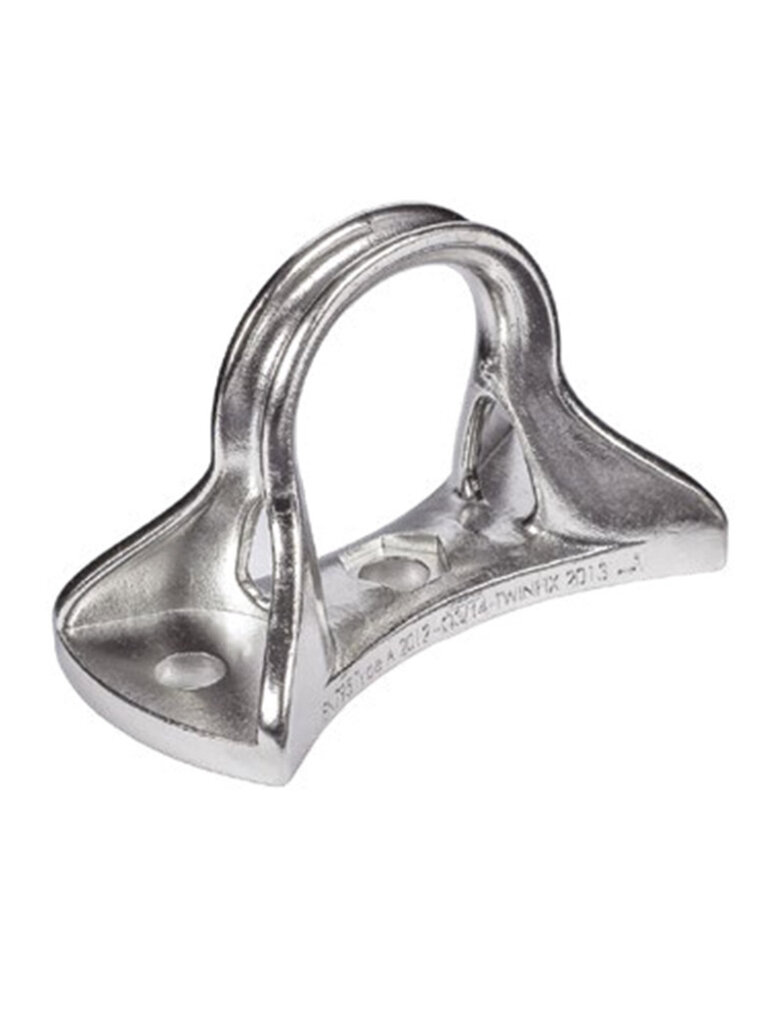

Twinfix XL Anchor – PTA016
The Twinfix XL Anchor is a heavy-duty, permanently installed anchorage point suitable for fall arrest and abseiling works. It can be installed on the ground, wall, or ceiling and supports use by two users simultaneously.
With a large connector opening of 58 × 48 mm, it allows easy connection of carabiners, lifelines, and full body harness kit components. The Twinfix XL is manufactured from stainless steel molded AISI 316 and is fully compliant with EN 795:2012 Type A and CEN/TS 16415:2013 standards, making it ideal for demanding industrial environments.
Key Components and Installation Methods
All TSS Lifeline Anchor Points are manufactured using high-grade stainless steel AISI 316, offering excellent corrosion resistance and durability in extreme weather conditions. Key components include reinforced anchor rings, precision-engineered base plates, and certified fixing bolts.
Installation methods vary depending on the application and structure type and can be performed on concrete, steel, walls, ceilings, or ground surfaces. Proper installation is essential to ensure optimal performance of fall protection PPE and long-term system reliability.
Why Choose TSS Lifeline Anchor Systems in the Middle East
TSS Lifeline Anchor Systems are engineered to meet the safety demands of large-scale industrial and construction projects across the Middle East. Their European manufacturing quality, compliance with international standards, and compatibility with construction safety harness solutions make them a trusted choice for oil & gas, construction, utilities, and maintenance sectors.
Designed for long-term use and harsh environments, TSS anchor points deliver reliable fall protection while supporting efficient and safe work at height
FAQ
What are Lifeline Anchor Points used for?
Lifeline Anchor Points are fixed anchorage devices that allow workers to safely connect fall protection PPE, preventing falls during work at height.
What equipment is compatible with Lifeline Anchor Points?
They are designed to work with fall arrest harness, full body harness kit, lanyards, lifelines, and other certified fall protection systems.
Which standards should Lifeline Anchor Points comply with?
Certified Lifeline Anchor Points should comply with EN 795:2012 Type A and CEN/TS 16415:2013 to ensure safe fall arrest performance.
How many users can use one Lifeline Anchor Point?
Depending on the anchor model and load rating, a Lifeline Anchor Point can support one or two users simultaneously.
Where can Lifeline Anchor Points be installed?
They can be installed on concrete or steel structures, including walls, ceilings, and ground surfaces, depending on the application.
How do I choose the right Lifeline Anchor Point for my project?
Selection depends on structure type, number of users, and compatibility with existing construction safety harness and fall protection PPE systems.
